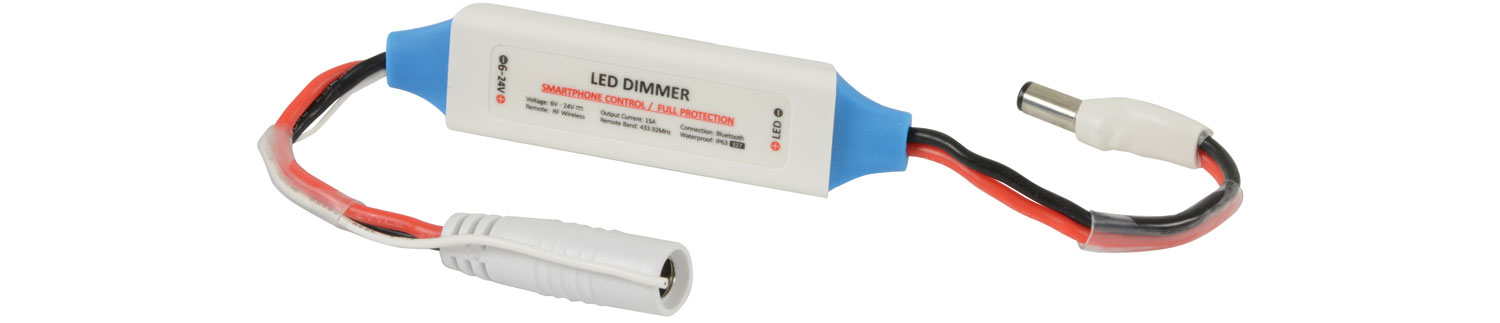

Bluetooth® LED Tape Dimmer

153.841UK BTD2
Be the first to review

Bluetooth controller to operate single colour LED tape from a smartphone using the ColorEasy1 Plus™ app for android or iOS. Dimming levels can be stored into 16 internal memories.

  • Compatible with HRC3 / WRC3 remotes (153.847UK, 153.848UK)
  • Operates via the ColorEasy1 Plus™ app
  • Easy connection to Lyyt single colour LED tape
Full description Find retailer
Description Version Packed
153.841UK
Bluetooth® LED Tape Dimmer 		Bag Antistatic

Bluetooth® LED Tape Dimmer

Bluetooth controller to operate single colour LED tape from a smartphone using the ColorEasy1 Plus™ app for android or iOS. Dimming levels can be stored into 16 internal memories.

  • Compatible with HRC3 / WRC3 remotes (153.847UK, 153.848UK)
  • Operates via the ColorEasy1 Plus™ app
  • Easy connection to Lyyt single colour LED tape

Specification

  • Power supply 6 - 24Vdc
  • Max. current 10A
  • IP rating IP63
  • Bluetooth version Bluetooth v 2.1/4.0 Class 2
  • Remote frequency 433.92MHz (from optional HRC3 or WRC3)
  • Connections DC5521 jack input + output
  • Dimming control PWM constant voltage
  • Protection Overheat, overload
  • Dimensions 90 x 20 x 10mm
  • Weight 29g

Trade information

  153.841UK
Barcode / EAN 5015972175019
Package type Bag Antistatic
Package dimensions 100 x 150 x 20mm
Package weight 0.06kg
Package quantity 1 unit
Carton dimensions 300 x 250 x 210mm
Carton weight 5.60kg
Carton quantity 100 packages

Support

Instruction manual
For 153.841UK (1.3MB)
