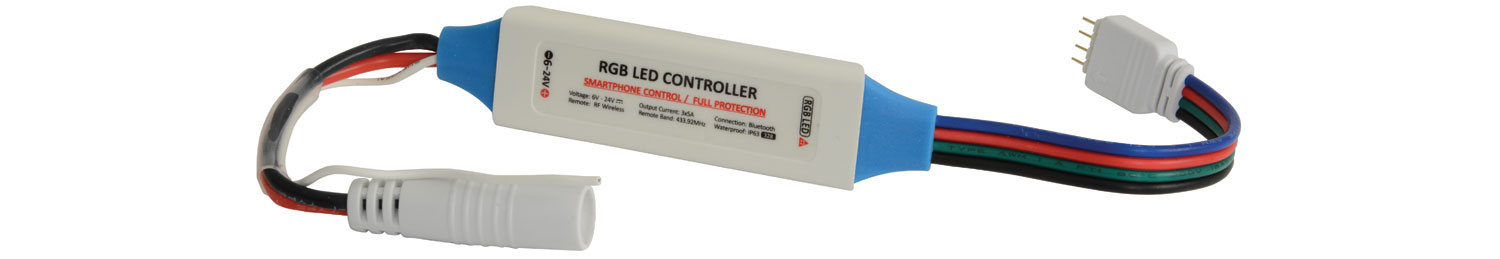

Bluetooth® RGB LED Tape Controller
153.845UK
BTC3
Bluetooth controller to operate RGB LED tape from a smartphone using the ColorEasy3 Plus™ app for android or iOS. Choose from 16 million static colours or 42 dynamic programs, which can be stored i...
- Compatible with HRC3 and WRC3 remotes (153.847UK, 153.848UK)
- Operates via the ColorEasy3 Plus app
- Easy connection to Lyyt Professional RGB LED tape
| Description | |
|---|---|
|
153.845UK
Bluetooth® RGB LED tape controller |
Bluetooth® RGB LED Tape Controller
Bluetooth controller to operate RGB LED tape from a smartphone using the ColorEasy3 Plus™ app for android or iOS. Choose from 16 million static colours or 42 dynamic programs, which can be stored into 16 internal memories.
- Compatible with HRC3 and WRC3 remotes (153.847UK, 153.848UK)
- Operates via the ColorEasy3 Plus app
- Easy connection to Lyyt Professional RGB LED tape
Specification
- Power supply 6 - 24Vdc
- Max. current 3 x 5A
- IP rating IP63
- Bluetooth version Bluetooth v 2.1/4.0 Class 2
- Remote frequency 433.92MHz (from optional HRC3 or WRC3)
- Connections DC5521 jack input + 4-pin output
- Dimming control PWM constant voltage
- Internal memory 16 programs (static or dynamic pattern)
- Protection Overheat, overload
- Dimensions 90 x 20 x 10mm
- Weight 29g
Trade information
| 153.845UK | |
|---|---|
| Barcode / EAN | 5015972174982 |
| Package type | Bag Antistatic |
| Package dimensions | 100 x 150 x 20mm |
| Package weight | 0.05kg |
| Package quantity | 1 unit |
| Carton dimensions | 300 x 250 x 210mm |
| Carton weight | 4.70kg |
| Carton quantity | 100 packages |
Support
Instruction manual
For 153.845UK (1.3MB)
For 153.845UK (1.3MB)
