LED Tape Decor Kits - Single Colour

156.791UK DIY-4X300-WW

DIY LED tape installation kits comprising 4 lengths of self adhesive LED tape with two 90° corner pieces and a 12Vdc power supply with an in-line switch. The tape can be cut to size and re-joined t...

  • IP65 protective epoxy coating
  • Can be cut at 5cm intervals
  • 60 high output LEDs per metre
Description Version Packed
156.791UK
LED Tape Decor Kit 4 x 300mm - warm white
4 x 300mm warm white Blister
156.792UK
LED Tape Decor Kit 4 x 300mm - cool white
4 x 300mm cool white Blister

LED Tape Decor Kits - Single Colour

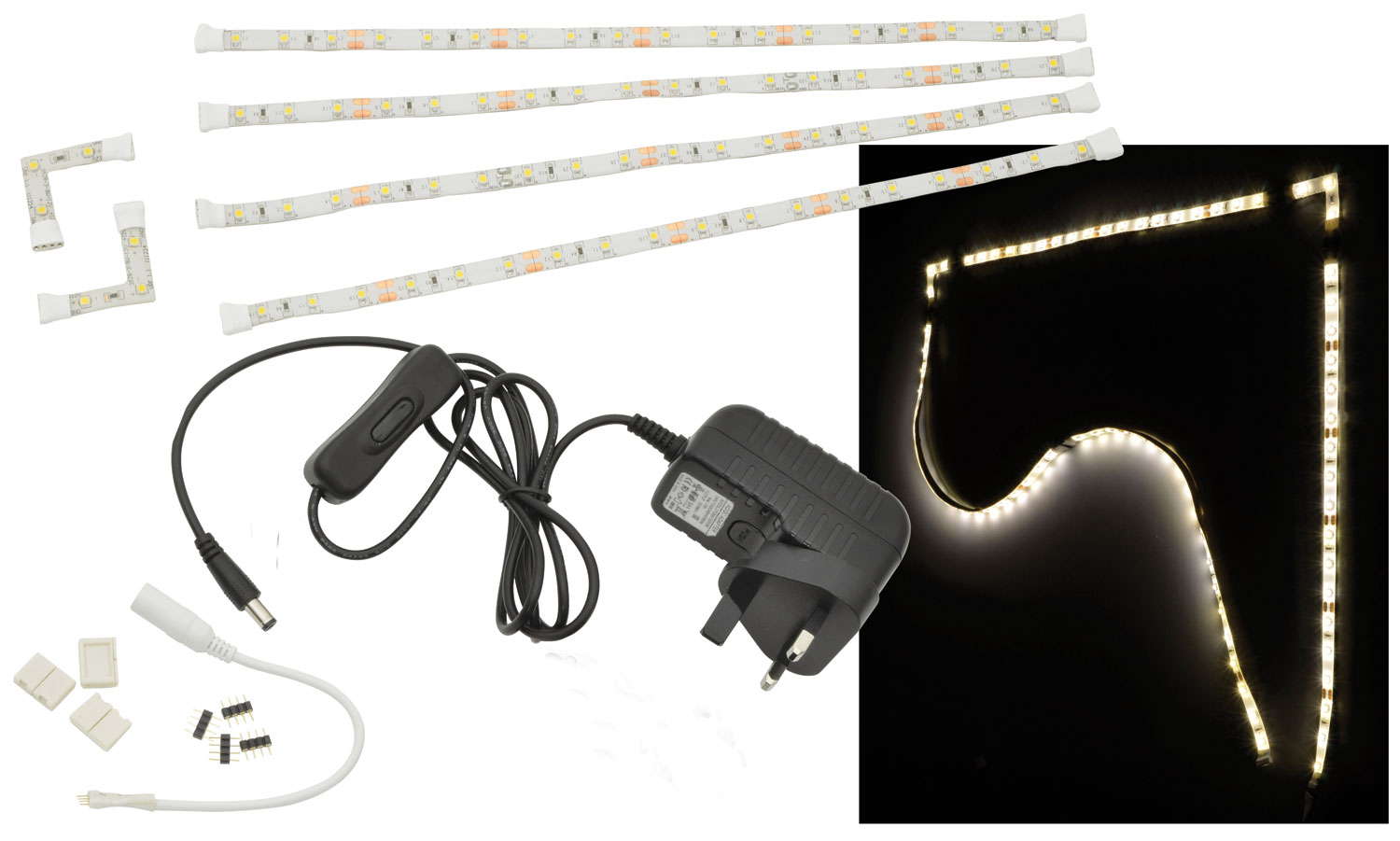

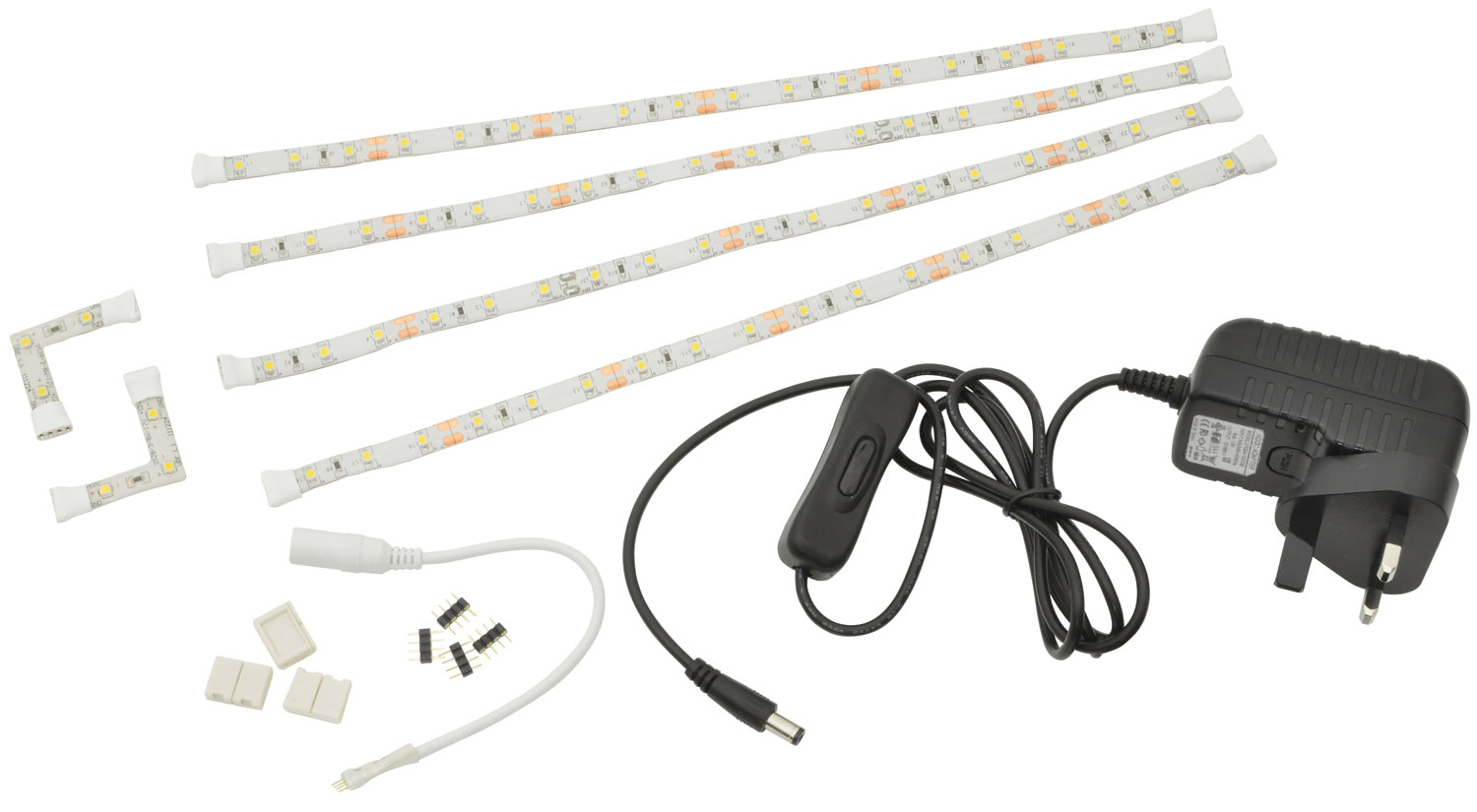

DIY LED tape installation kits comprising 4 lengths of self adhesive LED tape with two 90° corner pieces and a 12Vdc power supply with an in-line switch. The tape can be cut to size and re-joined to fit different sizes of trim or frames using the supplied snap-on connectors. The kit offers straightforward LED tape installation without requiring special tools or skills.

  • IP65 protective epoxy coating
  • Can be cut at 5cm intervals
  • 60 high output LEDs per metre
  • Low voltage operation
  • Supplied with multi-region power adaptor
  • Packed in a retail blister with test function

Specification : Common

  • Power supply 12Vdc, 1000mA
  • Lead length 1.25m (switch 0.3m from connector)
  • Beam angle 130° - 150°
  • Cut intervals 5cm
  • LED type SMD3528
  • IP rating IP65
  • Lumens per LED 6lm
  • Power consumption per metre 4.8W
  • Current 400mA/m
  • LED spacing 16mm
  • Cross-section 8.15 x 2.76mm

Specification : Versions

  156.791UK 156.792UK
LED colour Warm white (3000K) Cool white (6000K)
LED quantity 78 (18 per strip, 3 per corner piece) 78 (18 per strip, 3 per corner piece)
Length 4 x 300mm strips 4 x 300mm strips
Weight 280g 280g

Trade information

  156.791UK 156.792UK
Barcode / EAN 5015972169780 5015972169759
Package type Blister Blister
Package dimensions 400 x 160 x 45mm 400 x 160 x 45mm
Package weight 0.28kg 0.36kg
Package quantity 1 unit 1 unit
Carton dimensions 410 x 332 x 265mm 410 x 332 x 265mm
Carton weight 4.48kg 5.76kg
Carton quantity 16 packages 16 packages
Pack paper weight 0.02kg 0.02kg
Pack plastic weight 0.09kg 0.09kg
