Aluminium LED Tape Profile - Round Section

156.806UK AL1-R1816
Be the first to review

Aluminium LED tape profile - round

  • Easy fit end caps and diffuser
  • Protects LED tape and aids cooling
  • Diffuser reduces glare and softens light output
Full description Find retailer
Description Version Packed
156.806UK
Aluminium LED tape profile 1m - round section 		1m Tube
156.816UK
Aluminium LED tape profile 2m - round section 		2m Tube

Aluminium LED Tape Profile - Round Section

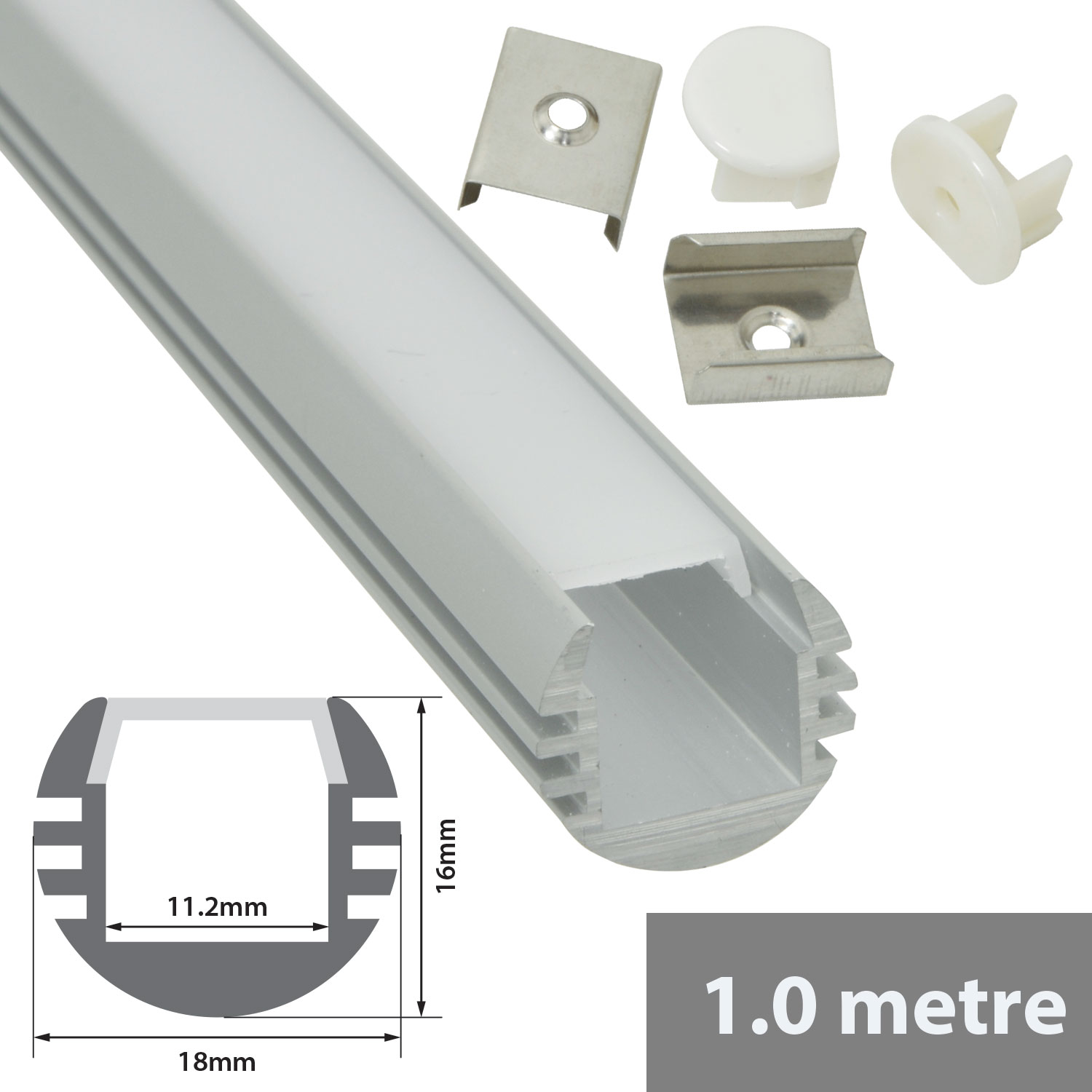

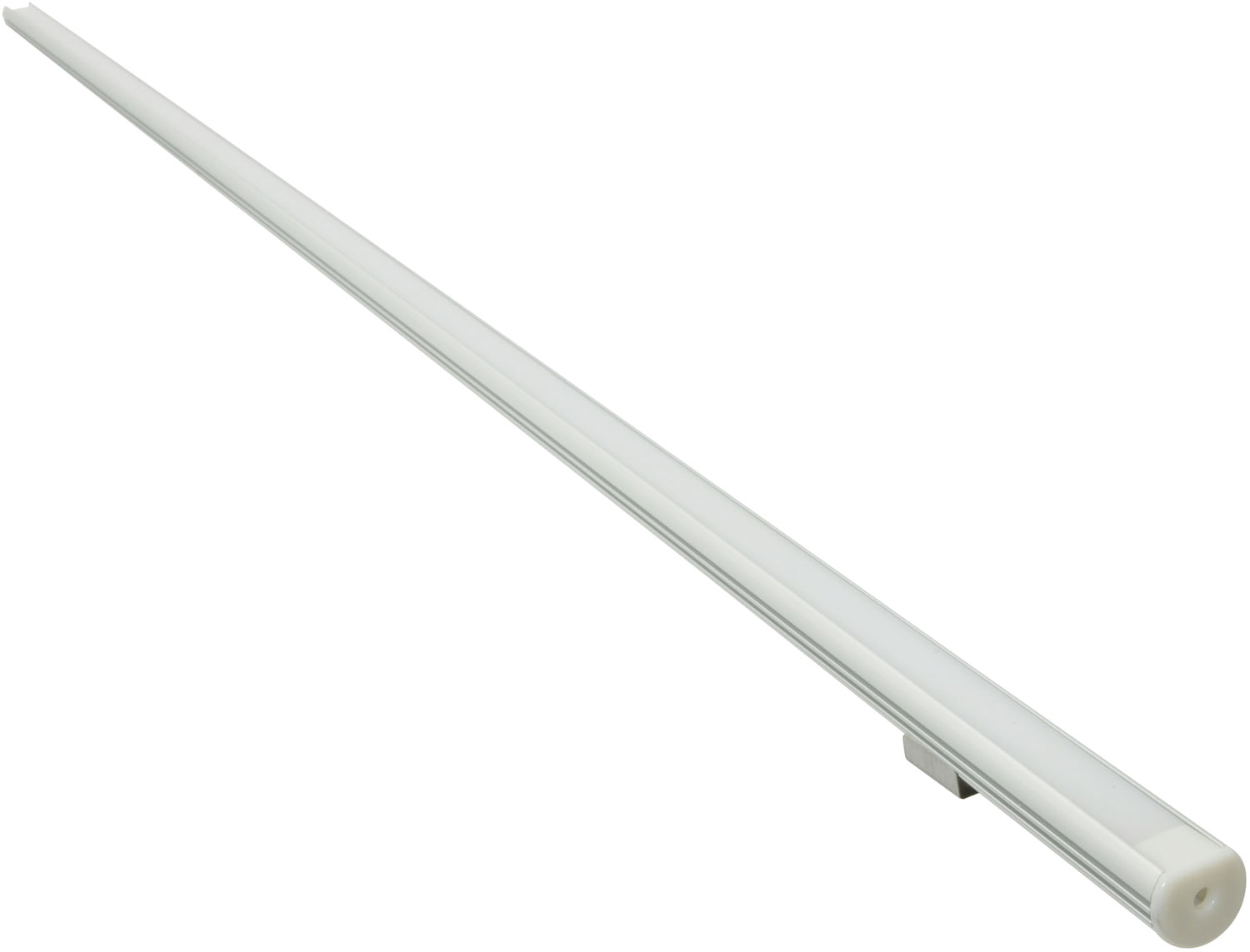

Extruded aluminium round section profile with diffuser and fitting accessories for LED tape installation. Ideal for illuminating corners and architectural details.

  • Supplied complete with installation accessories

Specification : Common

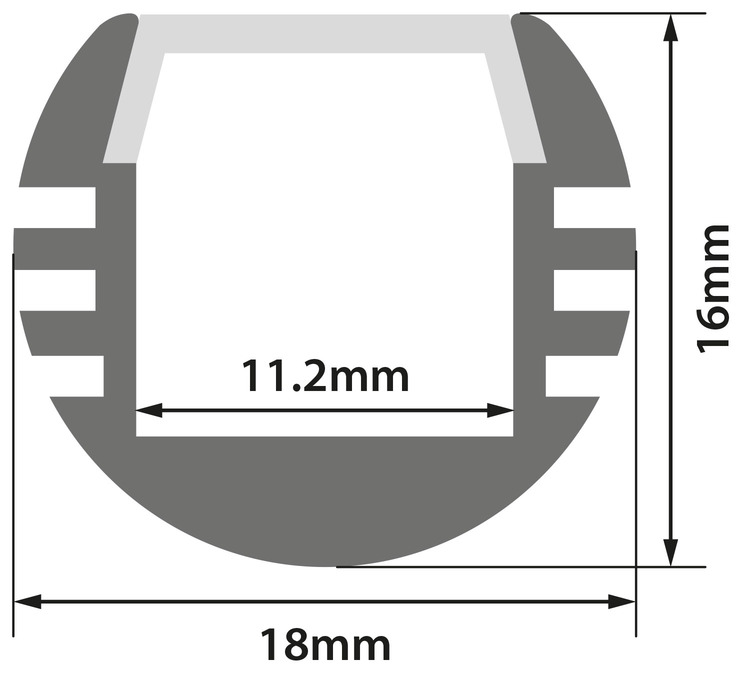

  • External cross-section 18 x 16mm
  • Internal cross-section 11 x 9mm
  • Diffuser visible width 11mm

Specification : Versions

  156.806UK 156.816UK
Length 1m 2m

Trade information

  156.806UK 156.816UK
Barcode / EAN 5015972170687 5015972176740
Package type Tube Tube
Package dimensions 1000 x 27 x 27mm 2000 x 27 x 27mm
Package weight 0.24kg 0.48kg
Package quantity 1 unit 1 unit
Carton dimensions 260 x 1060 x 223mm 2110 x 140 x 140mm
Carton weight 19.04kg 19.04kg
Carton quantity 80 packages 40 packages
Pack paper weight 0.10kg -
Pack plastic weight 0.00kg -

In the box

The box for this item contains :

  • 1 x aluminium extrusion
  • 1 x diffuser
  • 2 x end caps
  • 2 x mounting clips
