Lavalier Microphone VHF Wireless System

171.834UK VL1
Be the first to review

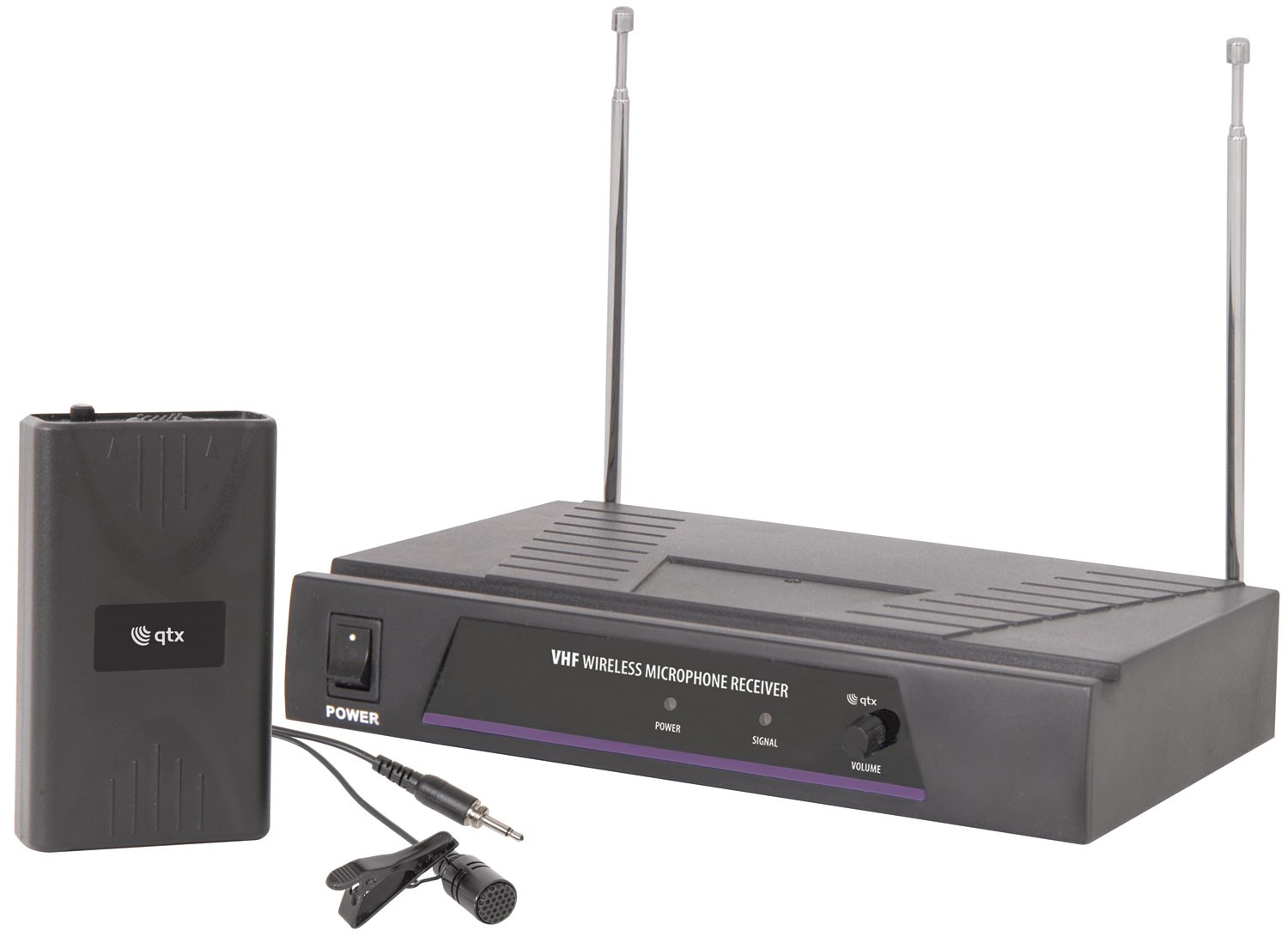

A VHF wireless microphone system with a half-width 1U receiver, a beltpack transmitter, and a lavalier tie-clip microphone.

  • Up to 50m range
  • Batteries and jack lead supplied
Full description Find retailer
Description Version Packed
171.834UK

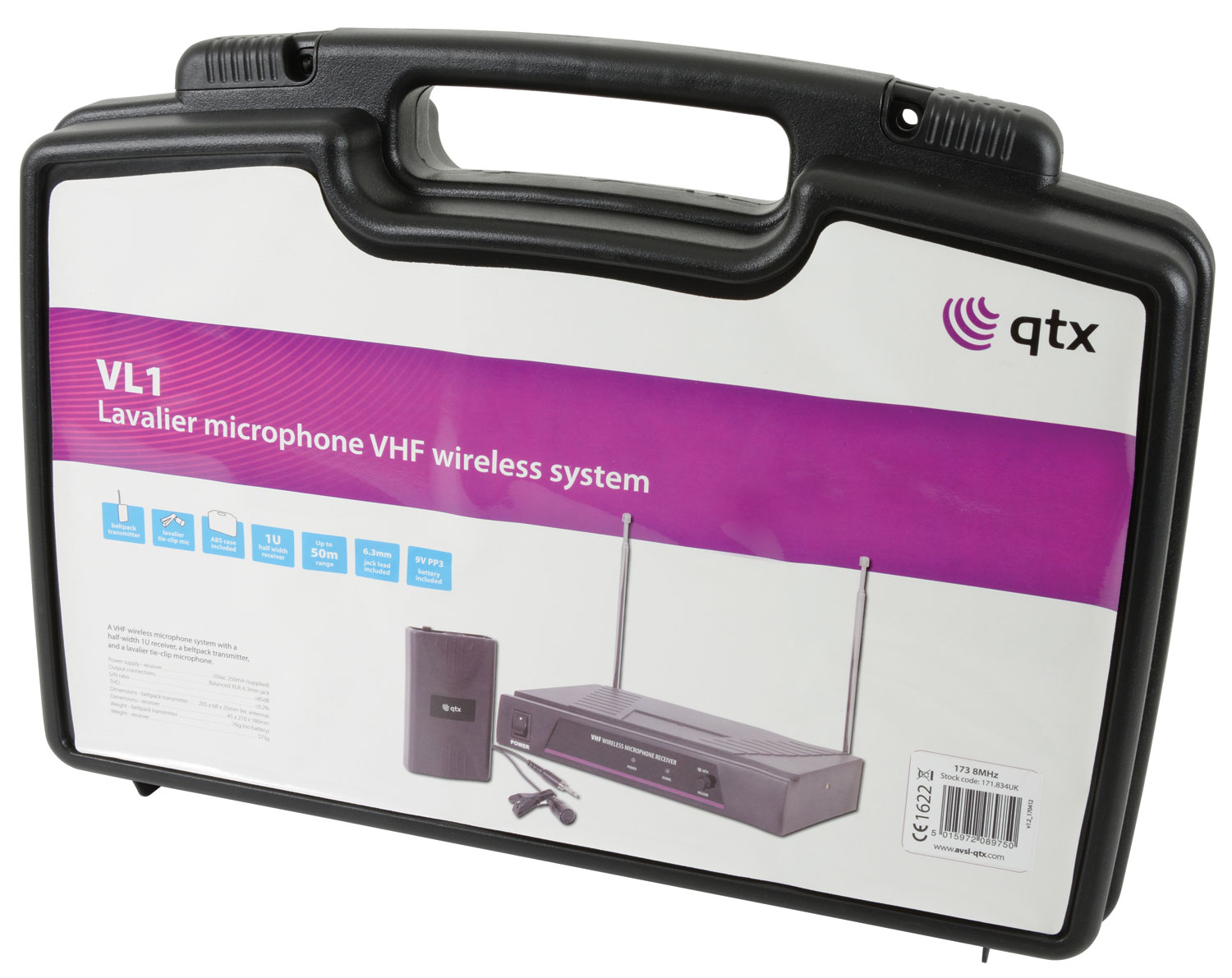

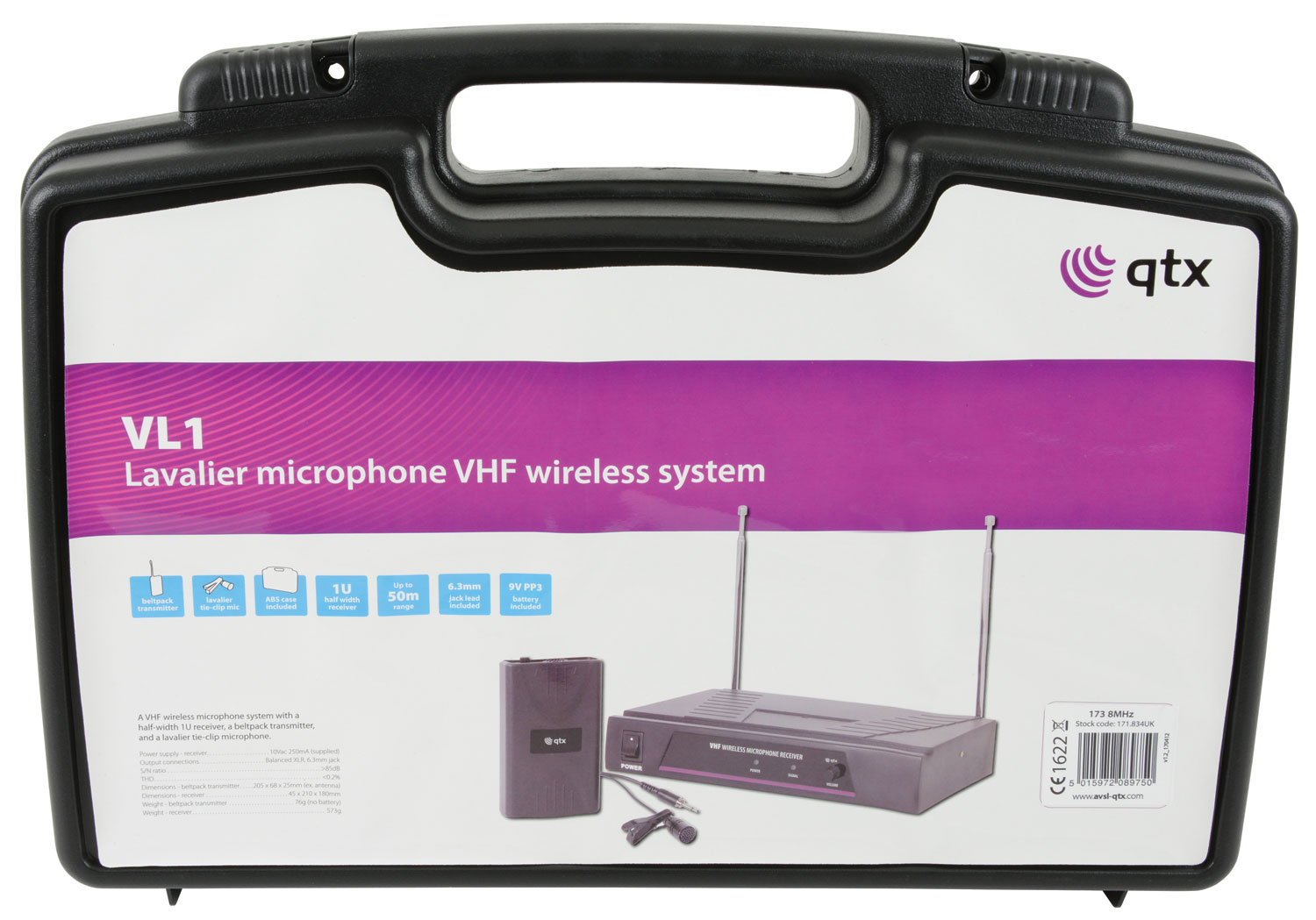

VHF wireless lavalier mic system - 173.8MHz 		173.8MHz ABS Case
171.835UK
VHF wireless lavalier mic system - 174.5MHz 		174.5MHz ABS Case

Lavalier Microphone VHF Wireless System

A VHF wireless microphone system with a half-width 1U receiver, a beltpack transmitter, and a lavalier tie-clip microphone.

  • Up to 50m range
  • Batteries and jack lead supplied

Specification : Common

  • Power supply : receiver 10Vac 250mA (supplied)
  • Battery : beltpack transmitter 9V, PP3 (supplied)
  • Maximum range 50m

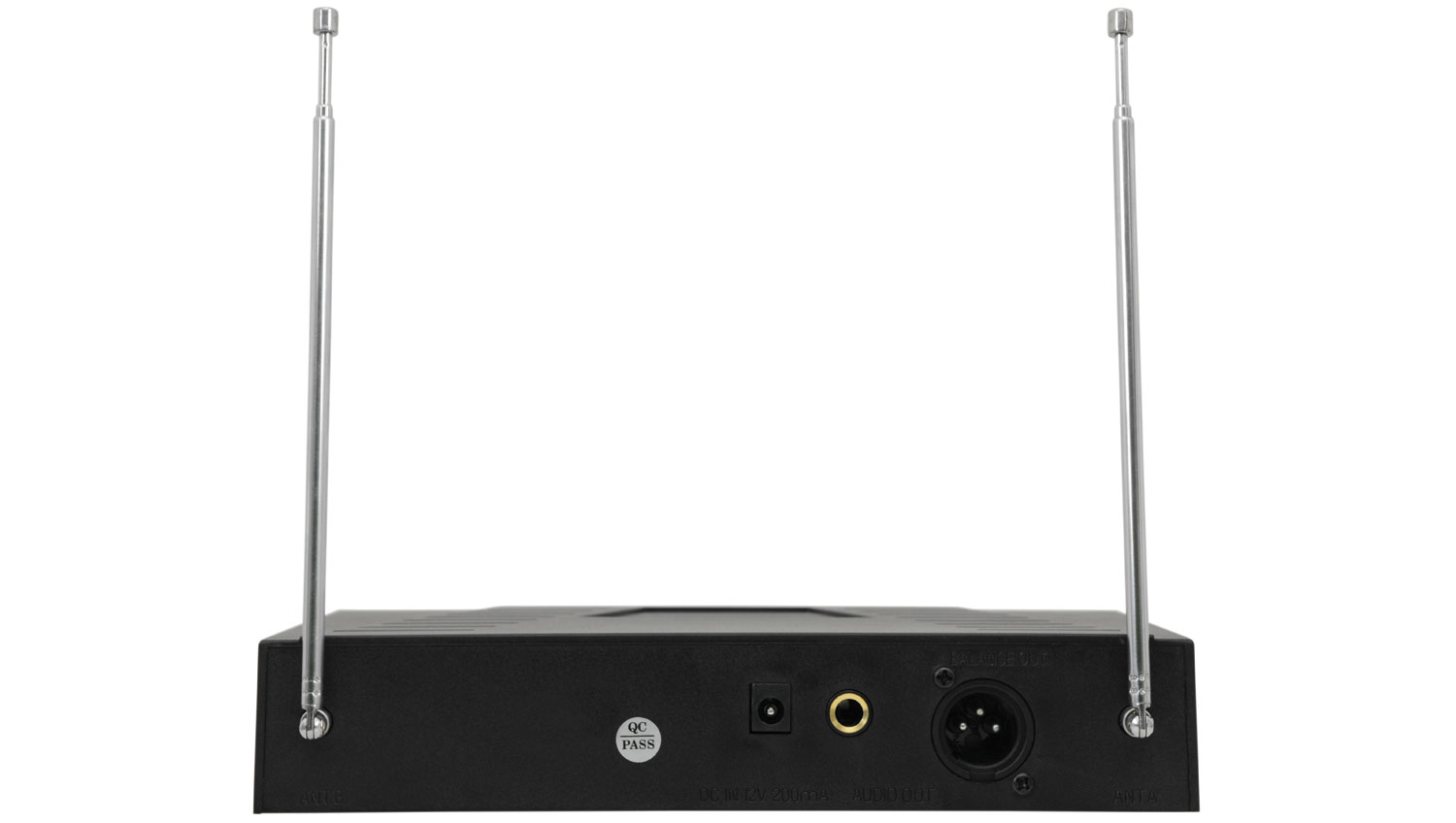

  • Output connections XLR, 6.3mm jack
  • S/N ratio >85dB
  • THD <0.2%
  • Dimensions : beltpack transmitter 205 x 68 x 25mm (ex. antenna)
  • Dimensions : receiver 45 x 210 x 180mm
  • Weight : beltpack transmitter 76g (no battery)
  • Weight : receiver 573g

Specification : Versions

  171.834UK 171.835UK
Operating frequency 173.8MHz 174.5MHz

Trade information

  171.834UK 171.835UK
Barcode / EAN 5015972089750 5015972089767
Package type ABS Case ABS Case
Package dimensions 320 x 430 x 100mm 320 x 430 x 100mm
Package weight 0.57kg 0.57kg
Package quantity 1 unit 1 unit
Carton dimensions 325 x 445 x 520mm 325 x 445 x 520mm
Carton weight 2.85kg 2.85kg
Carton quantity 5 packages 5 packages
Pack plastic weight 0.01kg 0.01kg

Support

Instruction manual
For 171.834UK (424KB)
Instruction manual
For 171.835UK (424KB)
