Cat5e U/Utp LSZH Network Cable

808.005UK

Be the first to review

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmiss...

Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
AWG 24 oxygen free solid copper conductor

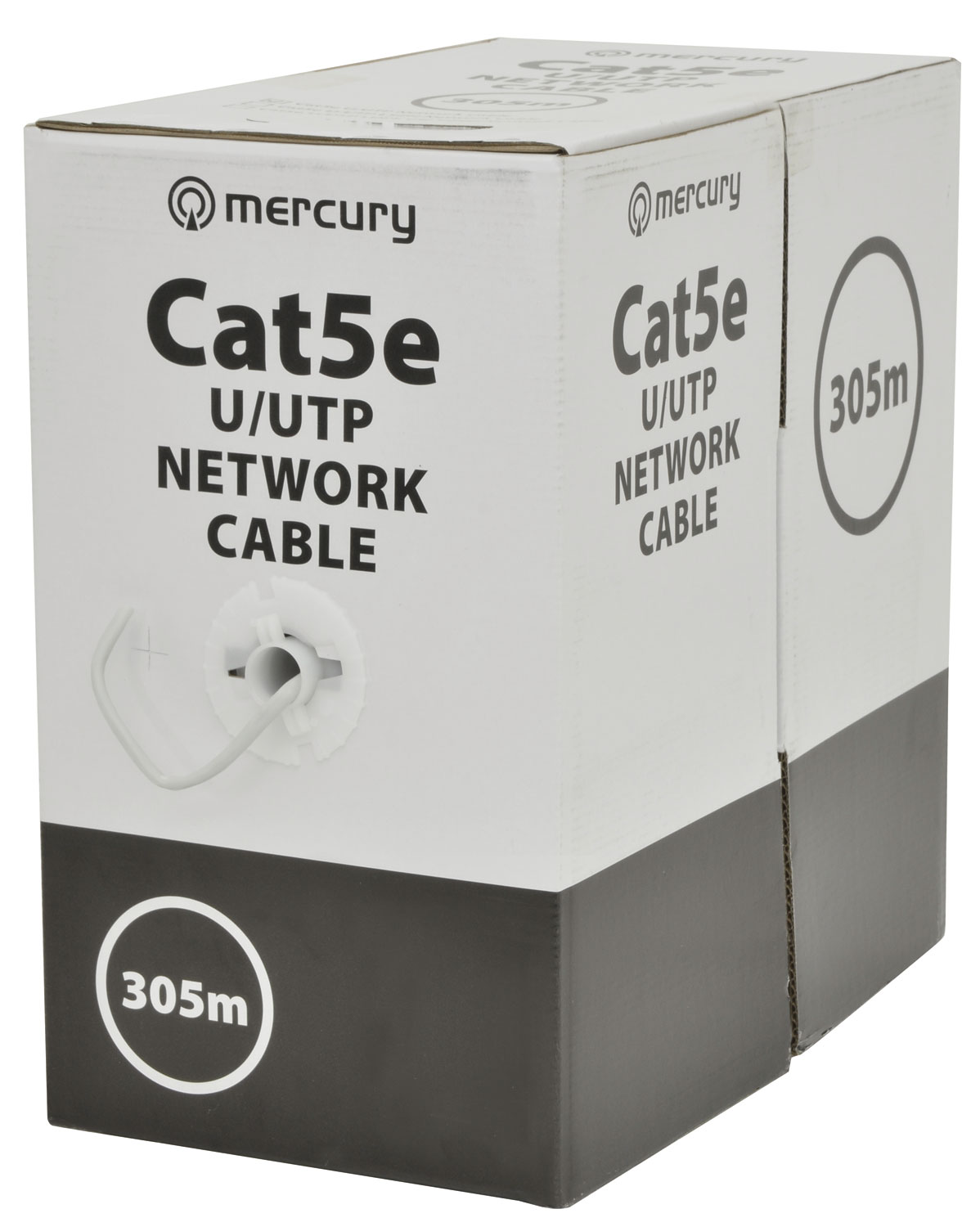

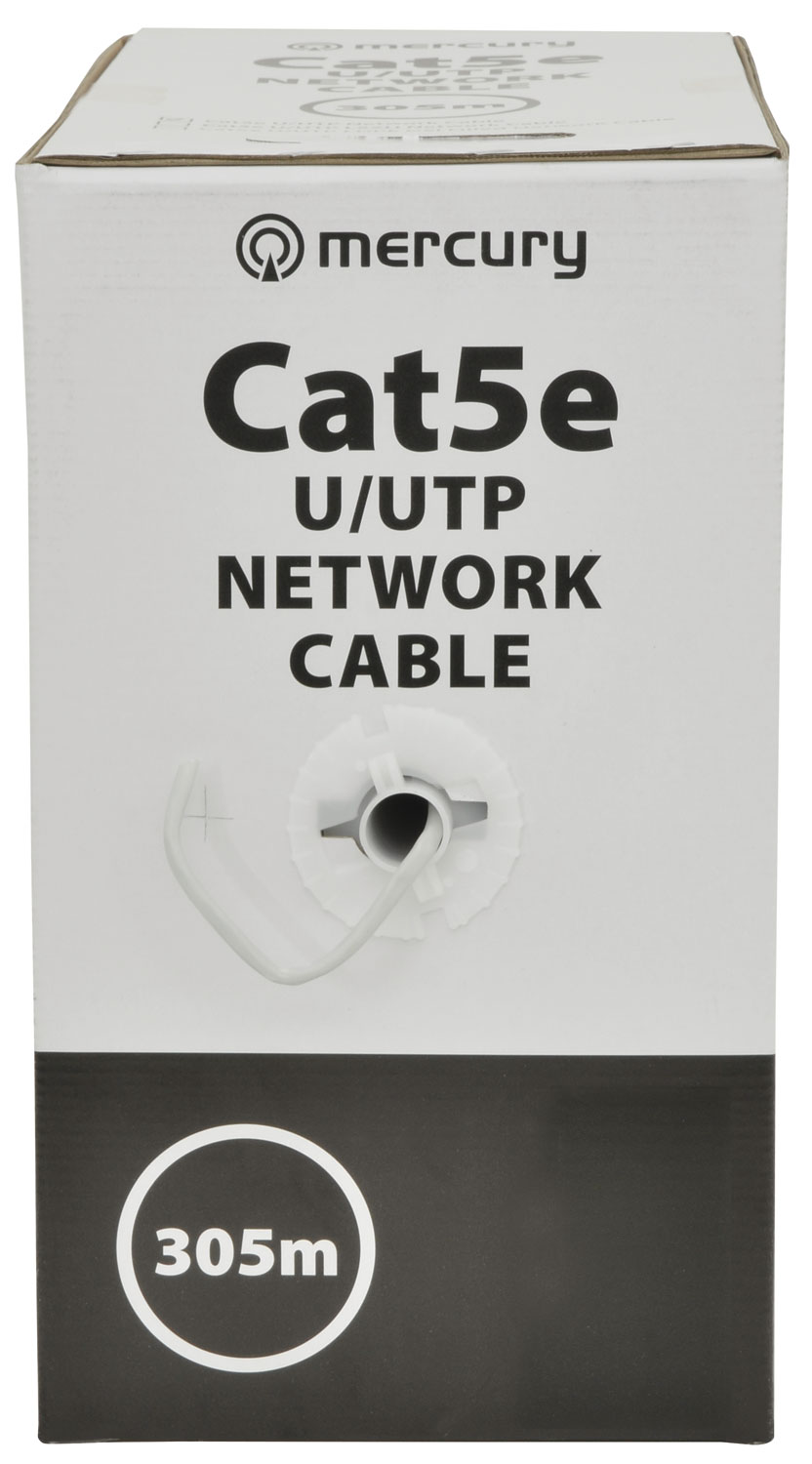

Supplied in an easy-pull dispensing box

Full description Find retailer

	Description	Version	Packed
	808.005UK Cat5e U/UTP LSZH Network Cable 305m Lilac	Lilac 305m	Box Printed

Cat5e U/Utp LSZH Network Cable

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box

Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard

Specification

Conductor Solid OFC
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm²
Cable diameter 5mmØ
Insulation HDPE 0.19mm thickness
Sheath LSZH 0.5mm thickness
Capacitance 4.9nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20dB @100m

Attenuation <22dB @100m
NEXT >35.3dB
PSNEXT >32.3dB
ELFEXT >23.8dB
PSELFEXT >20.8dB
Phase delay <570ns
Cable colour Lilac
Length 305m
Weight 8.6kg

Trade information

	808.005UK
Barcode / EAN	5015972166208
Package type	Box Printed
Package dimensions	360 x 360 x 200mm
Package weight	8.60kg
Package quantity	1 unit
Carton dimensions	440 x 370 x 370mm
Carton weight	17.20kg
Carton quantity	2 packages

Support

Fluke
Test Report

DoP Certification
In relation to the new CPR regulations 1st July 2017
