Cat5e F/UTP LSZH Network Cable

808.007UK
Be the first to review

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen and low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is desi...

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
Full description Find retailer
Description Version Packed
808.007UK
Cat5e F/UTP LSZH Network Cable 305m Lilac 		Lilac 305m Box Printed

Cat5e F/UTP LSZH Network Cable

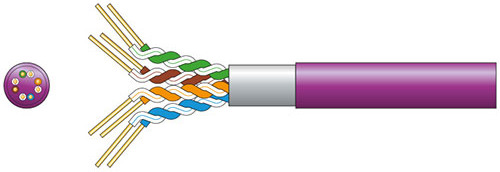

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen and low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 24 oxygen free solid copper conductor

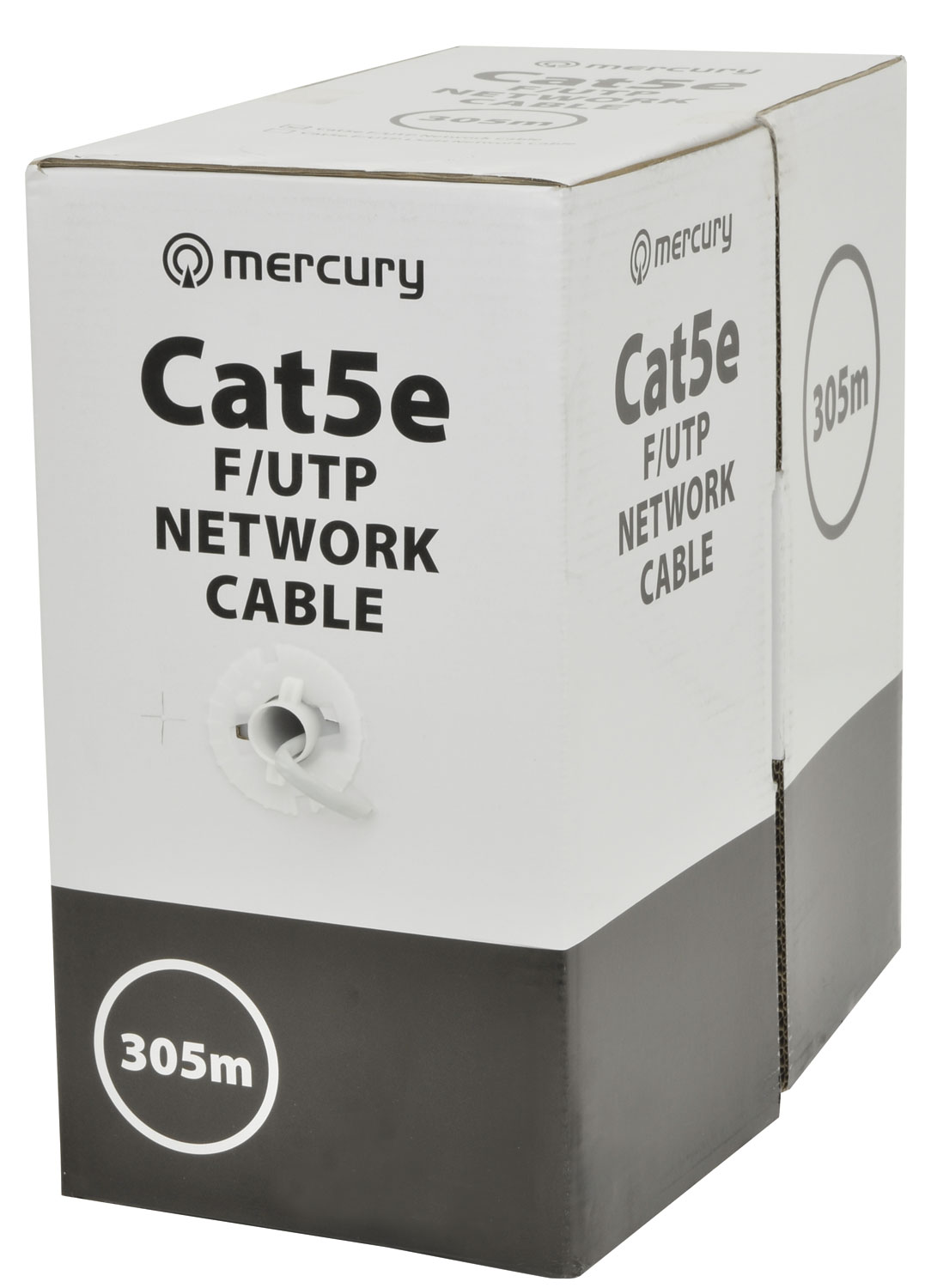

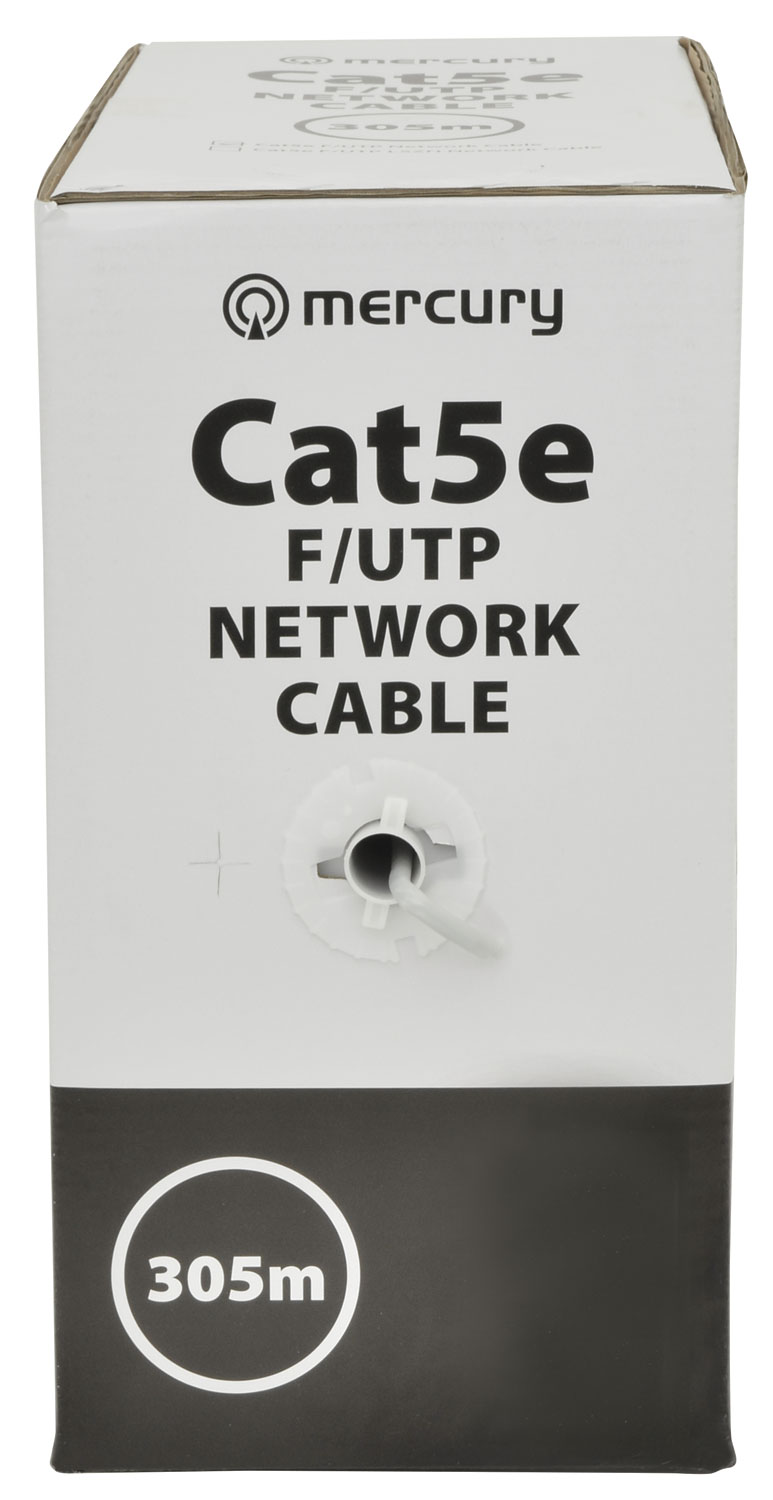

  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
  • Complies to TIA/EIA-568 Cat5e standard

Specification

  • Conductor Solid OFC
  • Strands 8 x 1/0.5mmØ ±2%
  • Conductor CSA 8 x 0.196mm²
  • Cable diameter 5.8mmØ
  • Insulation HDPE 0.225mm thickness
  • Sheath LSZH 0.55mm thickness
  • Screen material Mylar + Aluminium/Mylar + Drain wire
  • Capacitance 5.0nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (1 to 100MHz) 100±15 ohms
  • Return loss >20dB @100m
  • Attenuation <22dB @100m
  • NEXT >35.3dB
  • PSNEXT >32.3dB
  • ELFEXT >23.8dB
  • PSELFEXT >20.8dB
  • Phase delay <570ns
  • Cable colour Lilac
  • Length 305m
  • Weight 11.8kg

Trade information

  808.007UK
Barcode / EAN 5015972166192
Package type Box Printed
Package dimensions 420 x 420 x 210mm
Package weight 11.80kg
Package quantity 1 unit
Carton dimensions 450 x 430 x 430mm
Carton weight 23.60kg
Carton quantity 2 packages

Support

Fluke
Test Report
DoP Certification
