Cat6 F/UTP Lszh Network Cable

808.017UK
Be the first to review

Cat6 oxygen free copper twisted pair data cable with low overall aluminium foil screen and smoke zero halogen sheath. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is d...

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
Full description Find retailer
Description Version Packed
808.017UK
Cat6 F/UTP LSZH Network Cable 305m Lilac 		Lilac 305m Reel

Cat6 F/UTP Lszh Network Cable

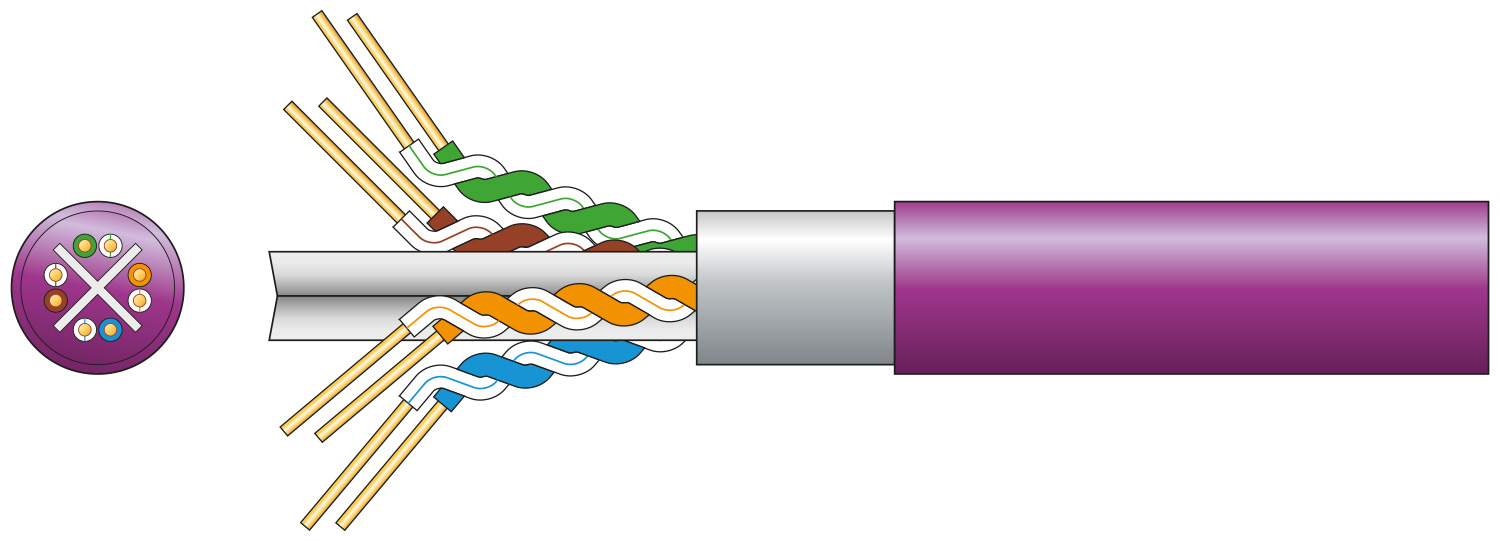

Cat6 oxygen free copper twisted pair data cable with low overall aluminium foil screen and smoke zero halogen sheath. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard

Specification

  • Conductor Solid OFC
  • Strands 8 x 1/0.57mmØ ±2%
  • Conductor CSA 8 x 0.255mm²
  • Screen material Mylar + Aluminium/Mylar + Drain wire
  • Cable diameter 7.4mmØ
  • Insulation HDPE 0.275mm thickness
  • Sheath LSZH 0.6mm thickness
  • Capacitance 5.5nF/100m
  • DC resistance @ 20°C <9.5 ohms/100m
  • Impedance (1 to 250MHz) 100±15 ohms
  • Return loss >17.3dB @100m
  • Attenuation <32.8dB @100m
  • NEXT >38.3dB
  • PSNEXT >36.3dB
  • ELFEXT >20dB
  • PSELFEXT >17dB
  • Phase delay <570ns
  • Cable colour Lilac
  • Length 305m
  • Weight 16.5kg

Trade information

  808.017UK
Barcode / EAN 5015972166147
Package type Reel
Package dimensions 370 x 370 x 240mm
Package weight 16.50kg
Package quantity 1 unit
Carton dimensions 375 x 375 x 245mm
Carton weight 16.50kg
Carton quantity 1 package
Pack paper weight 0.50kg

Support

Fluke
Test Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
