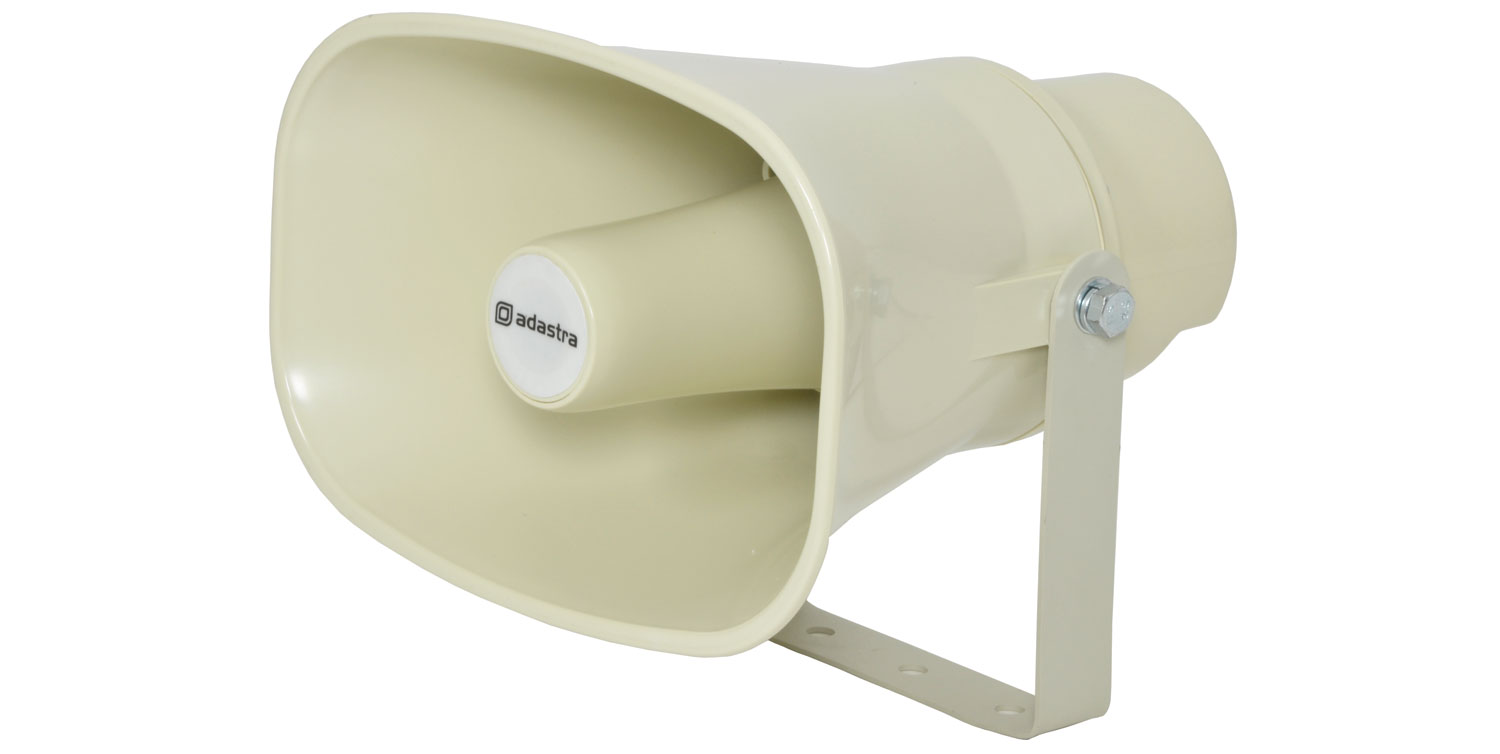

Rectangular Horn Speakers

952.255UK EH15V
Be the first to review

Rectangular shaped 100V line PA horn speakers ideal for general purpose and standard industrial installations. All models are moulded from durable ABS in an ivory colour and fitted with a high perf...

  • Rotary volume tapping switch
  • Adjustable steel mounting bracket
Full description Find retailer
Description Version Packed
952.255UK
Rectangular horn speaker, 100V line, 15W rms 		15W Box Printed
952.256UK
Rectangular horn speaker, 100V line, 30W rms 		30W Box Printed

Rectangular Horn Speakers

Rectangular shaped 100V line PA horn speakers ideal for general purpose and standard industrial installations. All models are moulded from durable ABS in an ivory colour and fitted with a high performance 100V line matching transformer and 350mm of 2 core double insulated connecting cable.

  • Rotary volume tapping switch
  • Adjustable steel mounting bracket

Specification : Common

  • IP rating IP56
  • Cable length 350mm

Specification : Versions

  952.255UK 952.256UK
Power rms 15W 30W
Frequency response 500Hz - 7kHz 350Hz - 5kHz
SPL @ 1W/1m 100dB 108dB
Impedance 670, 1.3k, 2.6k Ohms 330, 670, 1k, 2k, 3.3k, 10k Ohms
Tappings 15W, 7.5W, 3.75W 30W, 15W, 10W, 5W, 3W, 1W
Dimensions 220 x 158 x 233mm 236 x 205 x 185mm
Weight 1.4kg 1.8kg

Trade information

  952.255UK 952.256UK
Barcode / EAN 5015972125922 5015972125946
Package type Box Printed Box Printed
Package dimensions 170 x 225 x 250mm 210 x 290 x 275mm
Package weight 1.40kg 2.50kg
Package quantity 1 unit 1 unit
Carton dimensions 470 x 280 x 370mm 600 x 300 x 450mm
Carton weight 5.60kg 10.00kg
Carton quantity 4 packages 4 packages
Pack plastic weight 0.01kg 0.01kg
